The accompanying Jupyter notebook can be obtained here 1_beam_bending

Linear Elasticity

Linear elasticity is a fundamental theory in mechanics that describes the deformation of solid materials under the influence of external forces. It assumes that the deformation is small and that the relationship between stress and strain is linear. The theory is widely used in various engineering applications, such as structural analysis and material design. FEniCS provides a flexible and efficient platform for implementing finite element methods, making it an excellent choice for solving problems in linear elasticity.

See here to see how the weak form has been derived.

Here we are going to solve a cantilever beam under self load assuming linear elasticity. The beam will have a length of 3m and depth of 0.3m.

from dolfin import *
from matplotlib import pyplot as plt

length, depth = 3, .300
num_ele_along_depth = 10
ele_size = depth/num_ele_along_depth
mesh = RectangleMesh(Point(0, 0), Point(length, depth),
                     int(length/ele_size), int(depth/ele_size))

Different spaces in FEniCS

In FEniCS, a "space" is a mathematical construct that contains functions used to approximate the quantities of interest (e.g. displacement, strain, stress, force etc). Different types of function spaces are used depending on the nature of the problem and the type of field variable sought.

Quantity Type Function Space
Displacement (u) Vector VectorFunctionSpace
Stress Second-order tensor TensorFunctionSpace
Strain Second-order tensor TensorFunctionSpace
Von Mises Stress Scalar FunctionSpace
Body Force Vector VectorFunctionSpace
Surface Force Vector VectorFunctionSpace
Surface Traction Vector VectorFunctionSpace

Note:

  • Von Mises stress is a scalar quantity and is represented using a scalar function space in FEniCS.
  • The "Dimension" column still indicates the dimensionality of the problem (2D or 3D).
  • The "Type" column specifies the mathematical nature of the quantity (e.g., vector, tensor, scalar).
  • The "Function Space" column indicates the corresponding function space to represent the quantity in FEniCS.
V = FunctionSpace(mesh, 'CG', 1)
U = VectorFunctionSpace(mesh, 'CG', 1)
T0 = TensorFunctionSpace(mesh, 'DG', 0)

dim = mesh.topology().dim()

clamped_boundary = CompiledSubDomain("near(x[0],0)")
bc = DirichletBC(U, Constant((0,)*dim), clamped_boundary)

E, nu = 2e11, 0.3
rho, g = 7800, 9.81
\[ \begin{align} \sigma &= \lambda\,\hbox{tr}\,(\varepsilon) I + 2\mu\varepsilon,\\ \varepsilon &= \frac{1}{2}\left(\nabla u + (\nabla u)^{\top}\right), \end{align} \]
lmbda = (E * nu) / ((1 + nu) * (1 - 2 * nu))
mu = E / (2 * (1 + nu))


def epsilon(u):
    return 0.5*(grad(u) + grad(u).T)


def sigma(u):
    return lmbda*tr(epsilon(u))*Identity(dim) + 2*mu*epsilon(u)

# Define variational problem
u, v = TrialFunction(U), TestFunction(U)

f = Constant((0, -rho*g))

a = inner(sigma(u), epsilon(v))*dx
L = dot(f, v)*dx

# Compute solution
u = Function(U)
solve(a == L, u, bc)

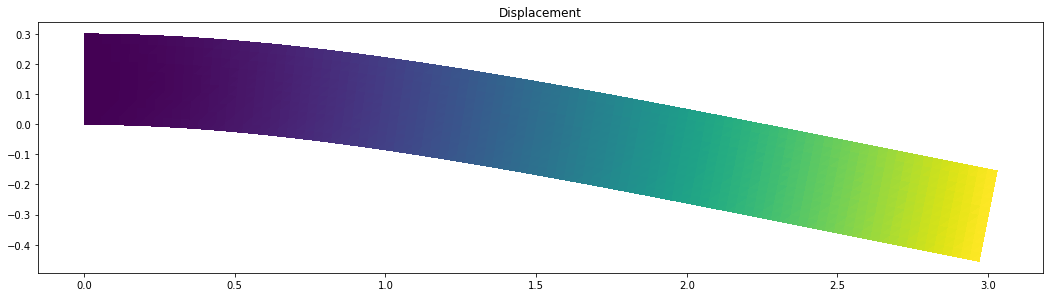

plt.figure(figsize=(18, 16))
# Plot solution
scale_factor = 1000
plot(u*scale_factor, title='Displacement', mode='displacement')

<matplotlib.collections.PolyCollection at 0x7fd27b5deac8>

png

u.vector().min()

-0.0004555058526919105

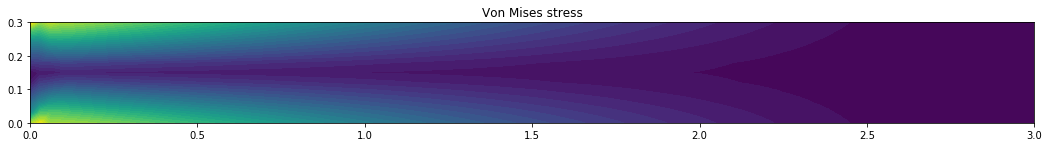

plt.figure(figsize=(18, 16))
# Plot stress
s = sigma(u) - (1./3)*tr(sigma(u))*Identity(dim)  # deviatoric stress
von_Mises = sqrt(3./2*inner(s, s))
von_Mises = project(von_Mises, V)
plot(von_Mises, title='Von Mises stress')

<matplotlib.tri.tricontour.TriContourSet at 0x7fd27b46a6a0>

png

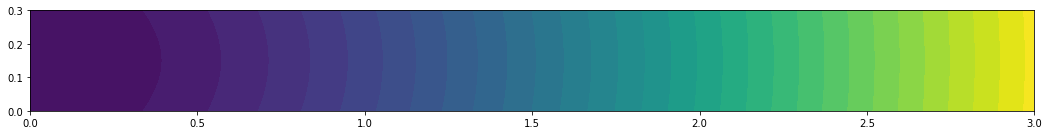

plt.figure(figsize=(18, 16))
# Compute magnitude of displacement
u_magnitude = sqrt(dot(u, u))
u_magnitude = project(u_magnitude, V)
plot(u_magnitude, 'Displacement magnitude')
print('min/max u:',
      u_magnitude.vector().vec().array.min(),
      u_magnitude.vector().vec().array.max())

min/max u: -2.4213610711295385e-10 0.0004564935128009332

png

stress = project(sigma(u),T0)

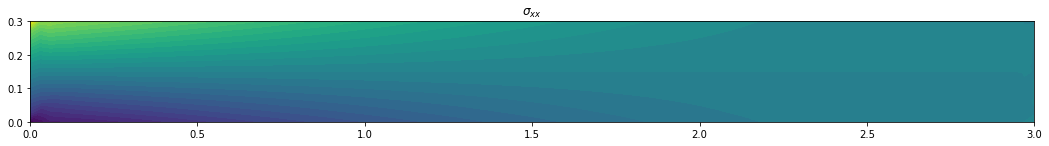

plt.figure(figsize=(18, 16))
plot(stress[0,0], title='$\sigma_{xx}$')

<matplotlib.tri.tricontour.TriContourSet at 0x7fd27b2fc978>

png

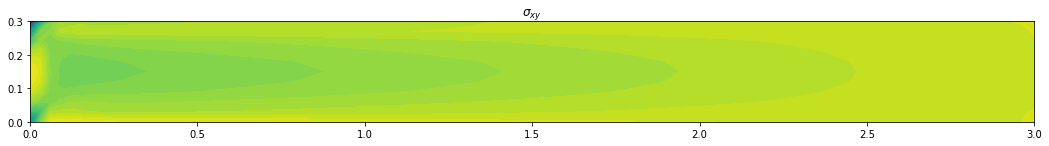

plt.figure(figsize=(18, 16))
plot(stress[0,1], title='$\sigma_{xy}$')

<matplotlib.tri.tricontour.TriContourSet at 0x7fd27b288160>

png

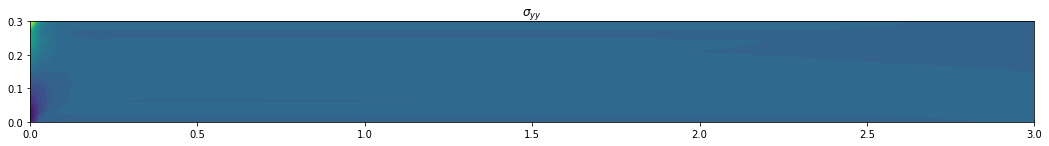

plt.figure(figsize=(18, 16))
plot(stress[1,1], title='$\sigma_{yy}$')

<matplotlib.tri.tricontour.TriContourSet at 0x7fd27b21e898>

png
